Knas Ekdahl Moisturizer

Knas Ekdahl Moisturizer

Electro Harmonix – Micro Synth Bass

FX - Knas Ekdahl Moisturizer LFO Springverb

Vrai Spring Reverb avec préamp, LFO et Filtre analo!

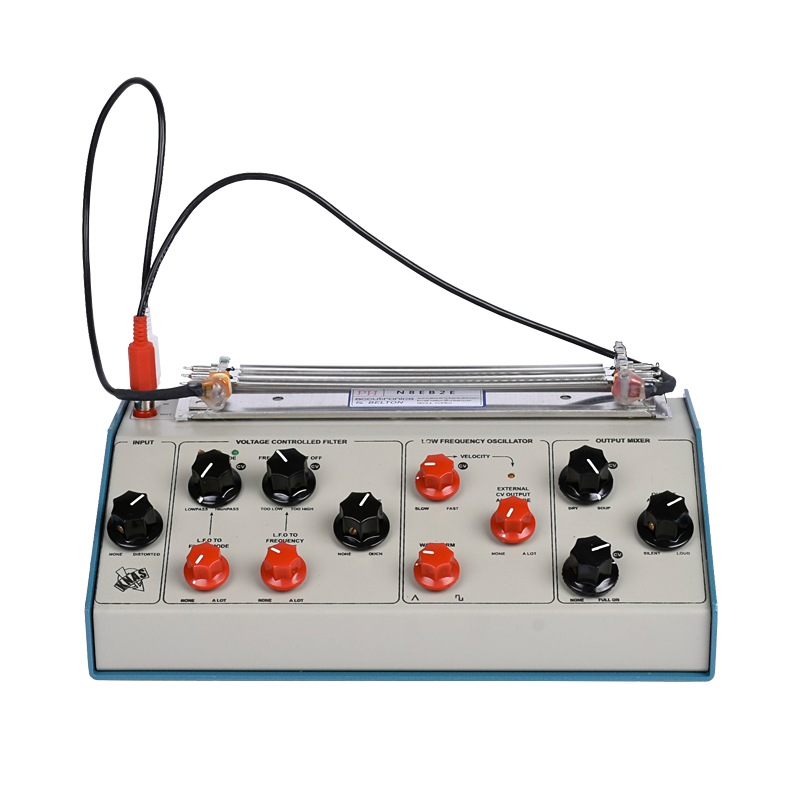

The Ekdahl Moisturizer is a spring reverb where the springs are exposed so they can be played/hit/fiddled with.
It features a pre-amp, a multimode filter and a LFO.

As well as being capable of creating sound in itself, you can of course also play sound through the springs like a regular spring reverb – this makes for happy-fun-time finger-modulation of the reverb on whatever audio that’s going through it. On top of this there’s an analog multimode filter that can be used to attenuate or exaggerate certain frequencies in the sound, this is real handy while playing the springs as you can – for instance – cut all the highs and just make thunderous doomy sounds or do the opposite; cut all the lows and make that ear piercing high frequency special love. Also, it incorporates an LFO that’s internally routable to the filter and that also has some external routing-stuff. The Ekdahl Moisturizer has tons of CV / Expression pedal options on the back for even more hilarious moments
The Moisturizer is a mono unit.

Technical Details :

The Ekdahl Moisturizer contains exactly:

Preamp (up to 10 times gain)

Reverb / Preamp wet/dry crossfader (Knob & CV/EP controllable)

State variable filter with
– Lowpass/Bandpass/Highpass seamless crossover (Knob, CV/EP & LFO controllable)
– Cutoff (Knob, CV/EP & LFO controllable)
– Resonance (WITHOUT resonance limiter)

LFO with
– Speed control (Knob & CV/EP controllable)
– Square / Triangle crossover
– External output with output amplitude knob

Filter / No filter wet/dry crossfader (Knob & CV/EP controllable)
Inputs and Outputs :

Audio In, Audio Out
CV inputs for: LFO Speed, Filter Mixture, VCF filter mode, VCF cutoff, Reverb mixture
CV output: LFO output

Electro Harmonix Holy Stain

Electro Harmonix Holy Stain

Electro Harmonix – Holy Stain

FX - Electro Harmonix HolyStain

Multi Effets Reverbs / Tremolo / Fuzz & Drive / Pitch -5/ +5 !

General Specs

  • True bypass
  • Controls:
    • Distortion: Volume, Tone, Dirt switch Clean/Fuzz/Drive, Color switch Bright/Dark/Warm
    • DSP: Amount (depending on DSP, it adjusts the Reverb Time or Pitch Shift Amount: – 4th to + 3rd or Tremolo Rate)
    • Mix: Mix between Distortion and DSP
  • Footswitches: Bypass, Mode (Room Reverb, Hall Reverb, Pitch Shift or Tremolo)
  • Connectors: Input, Output, EXP. Pedal (TRS), 9V
  • Recommended Expression Pedal: Boss FV-500L, Alesis F2, Roland EV7, Moog Music EP2, Roland EV5 and M-Audio EX-P

Technical Specs

  • Impedance:
    • Input: 100 KΩ
    • Output: 570 Ω
  • Power: 96DC-200BI Power Supply Included
    • Voltage: 9V DC
    • Polarity: Center Negative
    • Current Draw: 100 mA at 9V
  • Dimensions: 146 x 121 x 64 mm / 4.75 x 5.75 x 2.5 inch
